Coolant Magnetic Separator

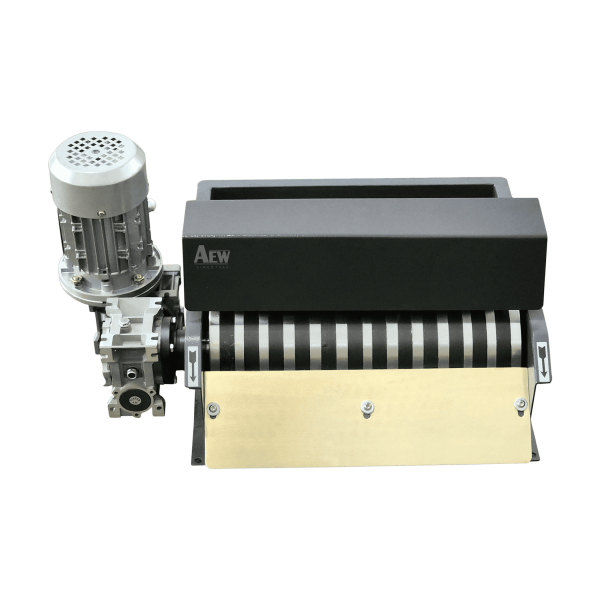

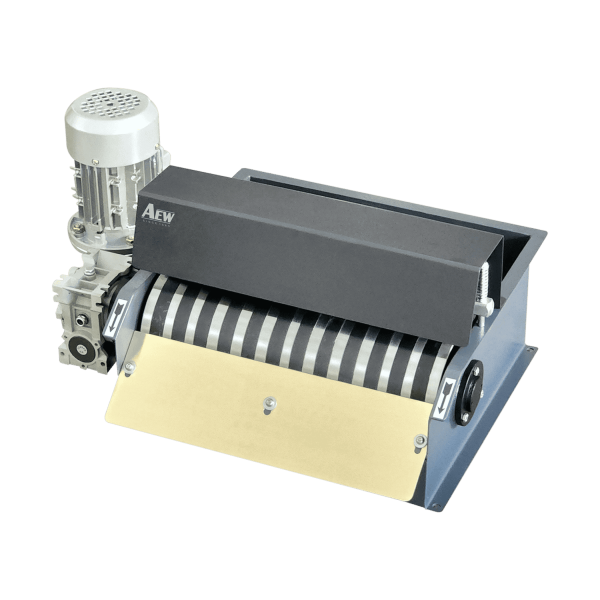

The Coolant Magnetic Separator is a specialized machine designed to remove fine ferrous particles from industrial coolant used in machining processes. By continuously filtering the coolant, it helps maintain its cleanliness, which in turn extends the life of cutting tools, improves surface finish, and enhances the overall efficiency of the machines.
Coolant Magnetic Separator Filters designed for filtering coolant oils contaminated with ferrous materials. These equipments are light weight, compact design and easily be installed. These Magnetic Coolant Filters are manufactured in 3 Model CMS-A, CMS-N, CMS-B
FEATURES
Efficient Ferrous Particle Removal
Automatic Operation
Improves Coolant Life
Enhances Machine Tool Performance
Compact & Durable Design
Low Maintenance
The drive of the drum is achieved by double reduction worm and worm wheel. The worms are made in high carbon steel, hardened and ground which run on sealed ball bearings. The worm wheels are made in high wear resistance materials. An oil indicator is provided to ensure the level of oil in the gear box. This box is designed for continues and trouble free running for years.

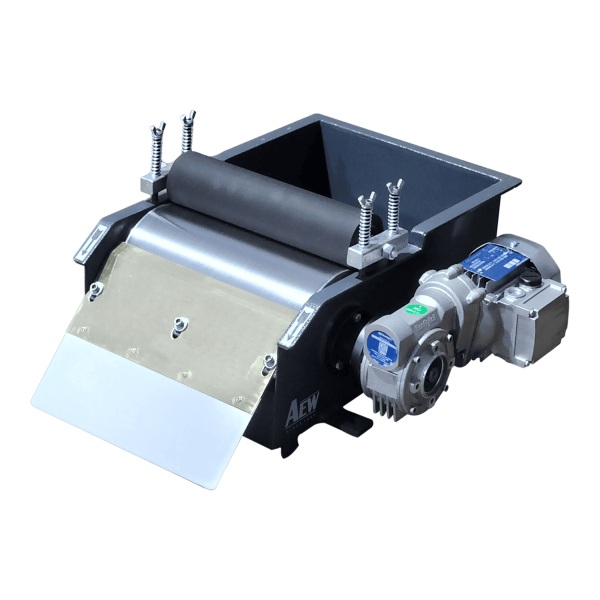

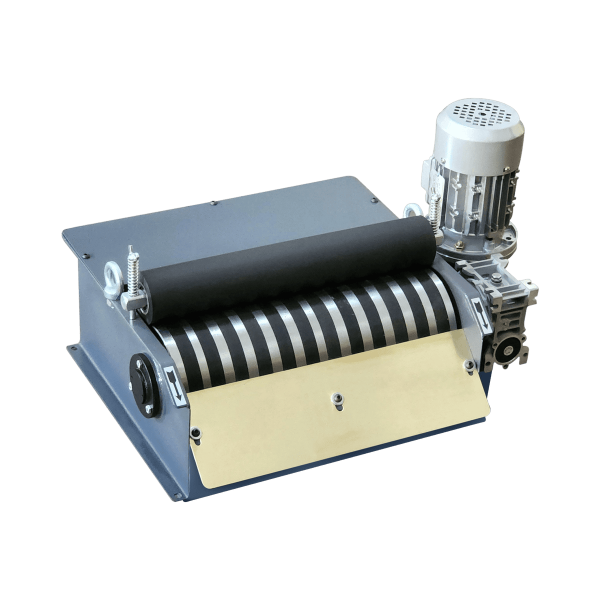

The contaminated coolant from the machine is fed into the inlet of Coolant Magnetic Separator. As it passes through the gap between the drum and the body, the dust particles are arrested by the magnetic drum. A synthetic rubber roller mounted on springs, squeezes the dust and allows only dry power, which is further scraped out from the drum by scraper and is collected in the dust collecting tray. The filtration level achieved will be almost 95% for ferrous particles.
These Magnetic Separators can be used with all types of grinding machines such as Cylindrical, Center less, internal, Surface, Double-disc & Roll-grinding machines. These can also be used for filtering honing oil of Honing machines.
These Magnetic Separators / Magnetic Filters can be used with all types of Grinding machines such as Cylindrical, Center less, internal, Surface, Double-disc & Roll-grinding machines. These can also be used for filtering honing oil of Honing machines with a optional coolant tank and coolant pump,This unit can be coupled with paper band coolant filter.
